HR/IRHP 100 Complete System

The HR/IRHP 100 fulfils all needs of a modern Rework System providing highest flexibility at the lowest cost!

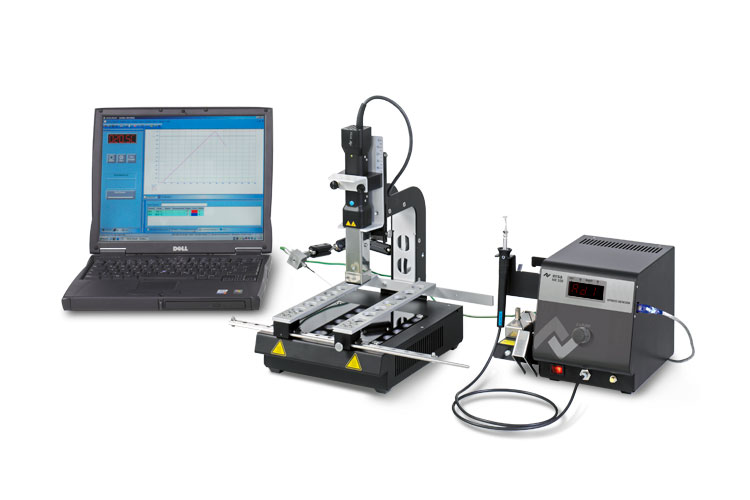

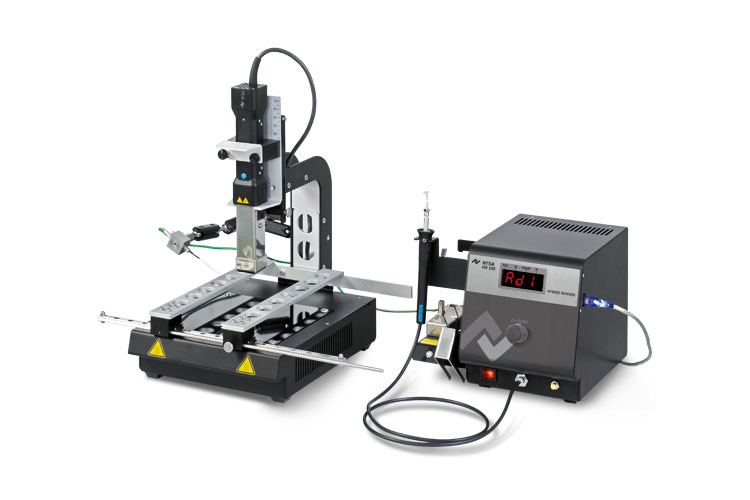

Advanced operators using the HR/IRHP 100 complete system can not only set air volume and heating power levels, but they can also run & record profiles! Ersa's ergonomically designed HYBRID TOOL handle contains a positioning laser which helps the operator to focus the heat precisely throughout the entire process. Via the Mini-USB port, the HR 100 can be connected to Ersa's top of the line and well established rework software, Ersa IRSoft (see pages 16 & 17). The HR 100 has been designed to be used with the IRHP 100, an 800 W IR-heating plate. This complete set provides powerful and safe IR bottom side heating as well as a Z-axis tool stand for the Hybrid Tool and an X-Y PCB board holder. The K-Type thermocouple included monitors PCB temperature and even allows for a closed loop soldering process with ramp profiles.

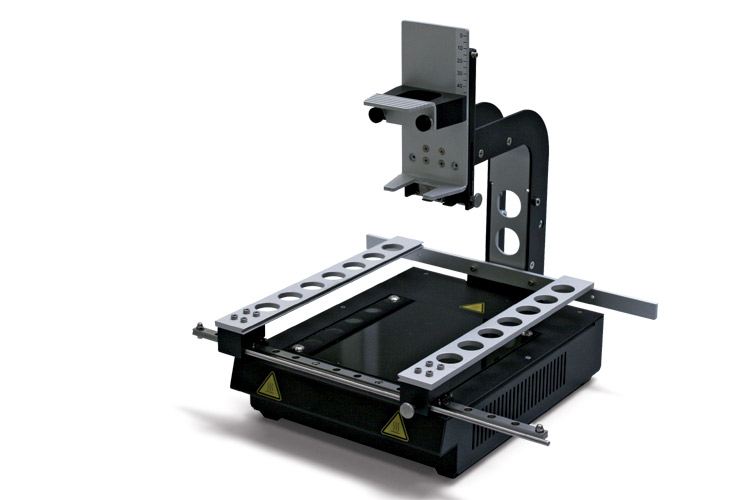

IRHP 100 Module Features:

• HYBRID TOOL holder with Z-axis height adjust & lock
• X-Y PCB board holder (290 mm x 250 mm)
• 800 W IR-heating plate with glass cover: 125 mm x 125 mm high performance IR heating element
• Closed Loop Profiles with Ersa IRSoft Rework
• Documentation software; User Level Access

Ordering information:

0IRHR100A-HP  HR 100 & IRHP 100 as complete set

0IRHP100A  IR Heating Plate IRHP 100 for HR 100

800 W IR-heating plate with HYBRID TOOL holder, PCB holder, Flexpoint TC-holder with AccuTC thermocouple, USB cable and IRSoft software

0IRHR100A  Hybrid Rework System HR 100 with 200 W Hybrid Tool, three Hybrid Adaptors, Adaptor changer, VacPen and tool holder
