Ersa的ETS 250波峰焊接系统

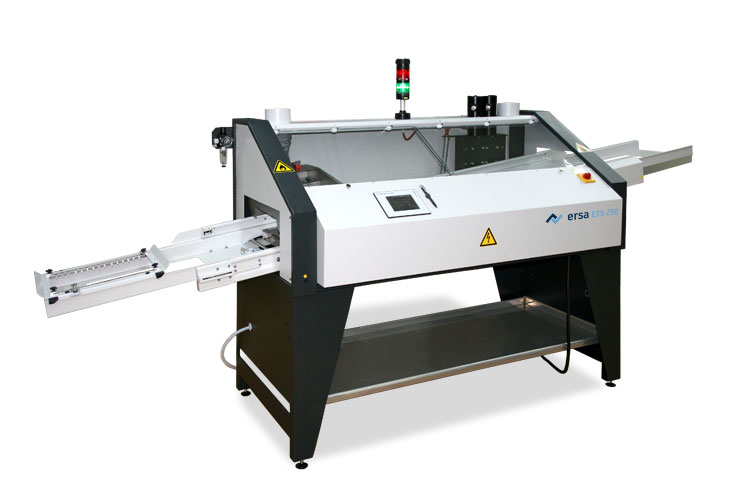

The ETS 250 is Ersa's smallest wave soldering machine specifically designed for small and medium sized production lots of non-complex mixed technology assemblies. Simple operation as well as low initial costs and operating expenses make the ETS 250 an extremely economical investment which will pay off rapidly. All components are perfectly suited for the processing of low-solid fluxes. The flux system is made entirely of stainless steel. A high-quality foam tube guarantees a superior and uniform formation of fine pored foam. An additional blow-off feature prevents drops and provides uniform flux wetting. Controlled and infinitely variable temperature settings allow an individual adaptation of the pre-heating to meet the specific requirement. Pre-determined, limit temperature values can be entered into the control. If these values are exceeded, a message will automatically appear on the clear text display.

The service-friendly stainless steel solder module is available as single wave or SMD version with double wave, whereas the SMD wave can be retrofitted. Being speed-controlled the solder pumps guarantee reprodu­cibility as well as a very consistent wave.

The user-friendly and versatile microprocessor control offers the conveniences of a large-scale system. The status of all modules, such as pre-heating temperatu­re, wave speed, solder temperature etc., are displayed as clear text. Set and actual values can be easily entered and read. Therefore comfortable operation is provided as well as fast modification of the parameters. Tolerance windows are freely programmable for all important parameters, thus optimum process reliability is achieved. By utilizing the integrated 7-day time clock the amount of operation is reduced to a minimum. The optional printer interface allows documentation of the process parameters according to ISO 9000 standards.
